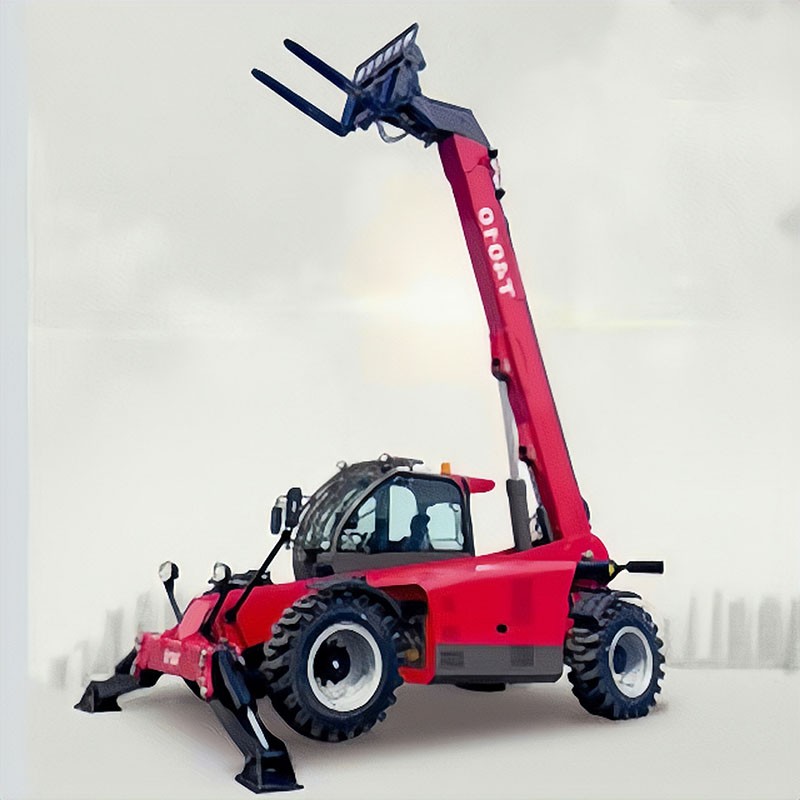

T4010 Telehandler
- Category： Telehandler
- Max.capacity: 4000kg
- Max.lifting height: 9.8m
- Max.outreach: 4.5m
- Engine: YCD4J22T-125
Main Performance Parameters of T4010 Telehandler
| Capacities | Max.capacity | 4000kg | |
| Max.lifting height | 9.8m | ||
| Max.outreach | 4.5m | ||
| Weight and dimensions | l11 | Overall length to carriage | 6.4m |
| l1 | Length to face of forks | 7.62m | |
| b1 | Overall width | 2.4m | |
| h17 | Overall height | 2.55m | |
| y | Wheelbase | 3.15m | |
| m4 | Ground clearance | 0.38m | |
| b4 | Overall cab width | 0.84m | |
| a4 | Tilt-up angle | 12° | |
| a5 | Tilt-down angle | 114° | |
| External turning radius(over tyres) | 4.1m | ||
| Unladen weight(withfork) | 12800kg | ||
| Tires type | Pneumatic | ||
| Standard tires | 16/70-24 | ||
| l/e/s | Forks length/width/section | 1220mm*125mmm*50mm | |
| Engine | Engine brand | Yuchai (optional) | |
| Engine norm | National II | ||
| Max.fuel sulphur content | 5000 ppm | ||
| Engine model | YCD4J22T-125 | ||
| Number of cylinders/Capacity of cylinders | 4-4400 cm² | ||
| L.C.Engine power rating-Power | 122 Hp/91 kW | ||
| Max.torque/Engine rotation | 400 Nm@1400 rpm | ||
| Drawbar pull(Laden | 10000 daN | ||
| Transmission | Transmission type | Torque converter (hydrostatic optional) | |
| Number of gears (forward/reverse) | 4/4 | ||
| Max.travel speed | 40km/h | ||
| Parking brake | Automatic air-cut brake (Optional wet braking) | ||
| Servicebrake | Immersed multi-dss braking on front &rear axdes | ||
| Tank capacities | Engine oil | 5.5L | |
| Hydraulic oil | 70L | ||
| Fuel tank | 95L |
