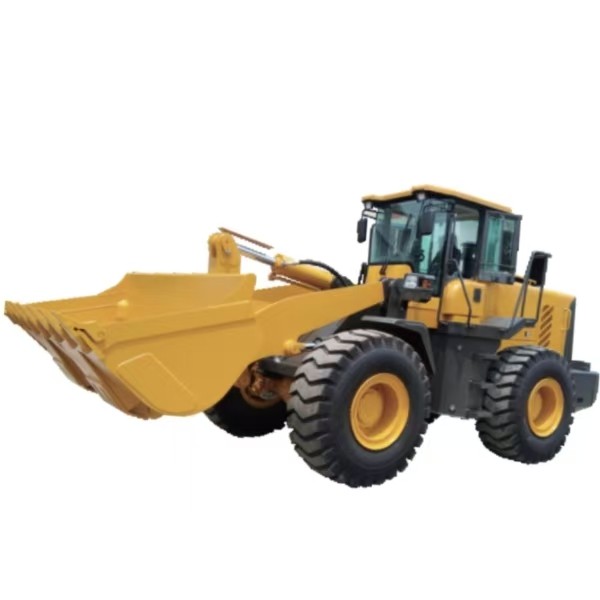

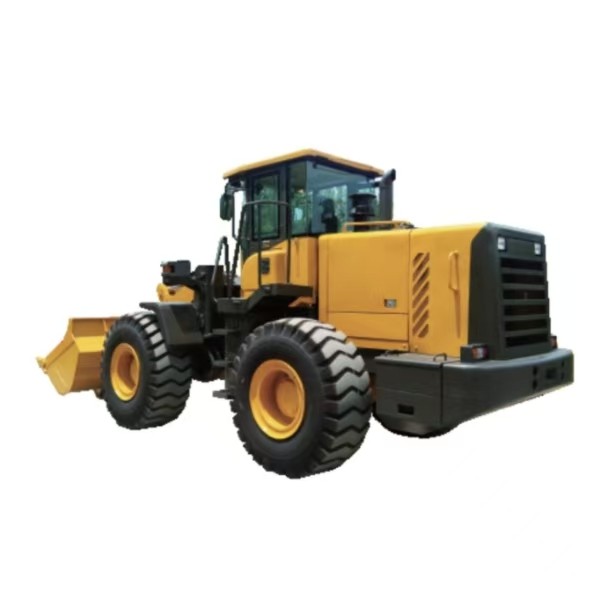

655G Wheel Loader
- Category： Wheel Loader
- Rated load: 5000kg
- Overall weight:15500kg
- Bucket capacity: 3m³
- Engine: Weichai Steyr WD10G220E21
Main Performance Parameters of 655G Wheel Loader
| Performance | 1 | Rated load | 5000kg | ||||||||
| 2 | Overall weight | 15500kg | |||||||||
| 3 | Bucket capacity | 3m³ | |||||||||
| 4 | Maximum tractive force | 150KN | |||||||||
| 5 | Maximum breakout force | ≥160KN | |||||||||
| 6 | Maximum grade ability | 30oc | |||||||||
| 7 | Maximum dump height | 3200mm | |||||||||
| 8 | Maximum dump reach | 1264mm | |||||||||
| 9 | Overall dimension (L*W*H) | 7900 x 3024 x3460mm | |||||||||
| 10 | Minimum turning radius | 6201mm | |||||||||
| Engine | 11 | Model | Weichai Steyr WD10G220E21 | ||||||||
| 12 | Type |
 National ll inline 6-cylinder four stroke
|
|||||||||
| 13 | No. of cylinders bore x stroke | 6 - 126x 130mm | |||||||||
| 14 | Rated power | 162kw-2400r/min | |||||||||
| 15 | Maximum torque | 920N . m | |||||||||
| 16 | Minimum fuel consumption rate | ≤215g/kw. h | |||||||||
| Tyre | 17 | Type specification | 23 . 5 -25 | ||||||||
| 18 | Front tyre pressure | 0.4Mpa | |||||||||
| 19 | Rear tyre pressure | 0.35Mpa | |||||||||
