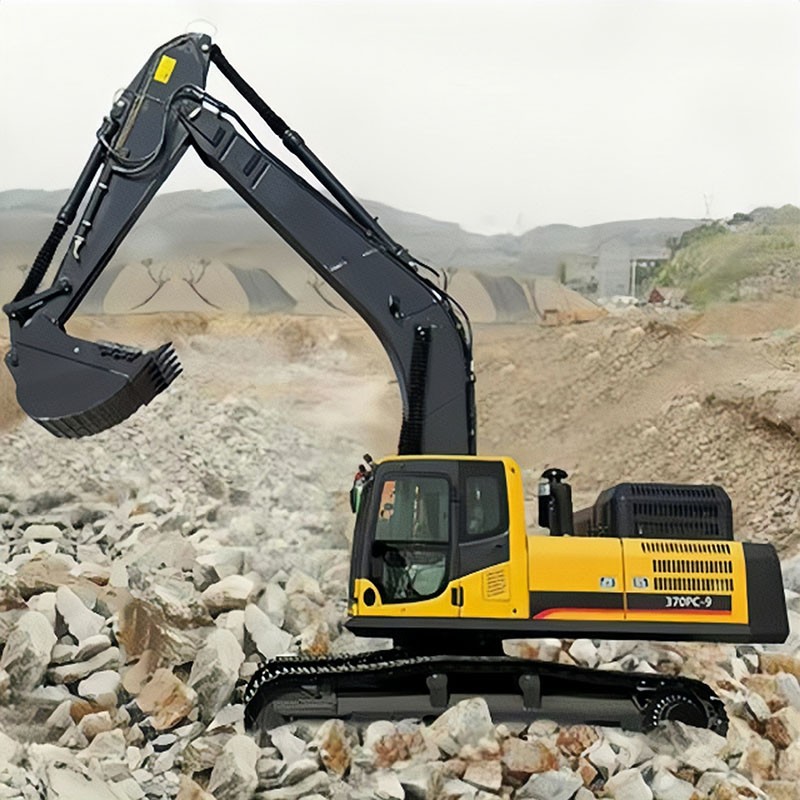

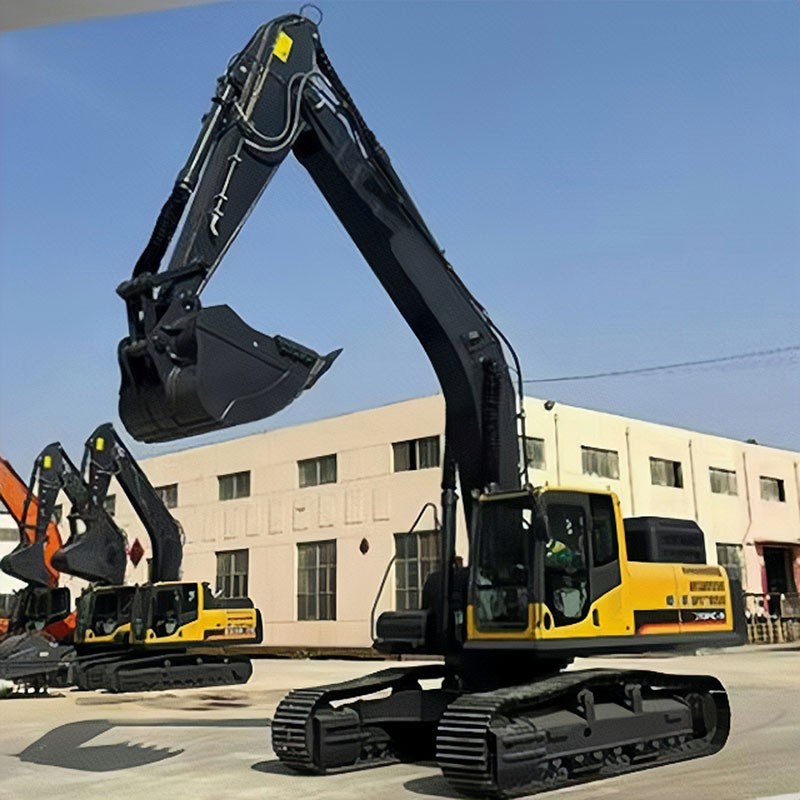

370PC-9 Excavator
- Category： Excavator
- Operating weight: 35.6T
- Bucket capacity: 1.8m³
- Digging force: Standard 188kN/Pressurized 199.9kN
- Engine: Cummins
Main Performance Parameters of 370PC-9 Excavator
| Performance parameters | 1 | Operating weight | 35.6T |
| 2 | Bucket capacity | 1.8m³ | |
| 3 | Engine brand | Cummins | |
| 4 | Engine rated power | 212kW | |
| 5 | Swing speed | 9.4min⁻¹ | |
| 6 | Travel speed (high/low) | 5.7-3.2km/h | |
| 7 | Ground specific pressure | 0.57kg/cm² | |
| 8 | Grade ability | 70% | |
| 9 | Digging force | Standard 188kN/Pressurized 199.9kN | |
| 10 | Boom length | 7275mm | |
| 11 | Arm length | 3100mm | |
| Dimensions | 12 | Transport length | 10615mm |
| 13 | Transport arm height | 3697mm | |
| 14 | Wheelbase | 4039mm | |
| 15 | Radius of gyration platfom end | 3188mm | |
| 16 | Counter weight ground clearance | 1150mm | |
| 17 | Track gauge | 2600mm | |
| 18 | Total width of under carriage | 3200mm | |
| 19 | Width of upper structure | 3199mm | |
| 20 | Width of track shoe | 600mm | |
| 21 | Ground clearance | 506mm | |
| 22 | Total length of travel mechanism | 4940mm | |
| 23 | Cabin height | 845mm |
