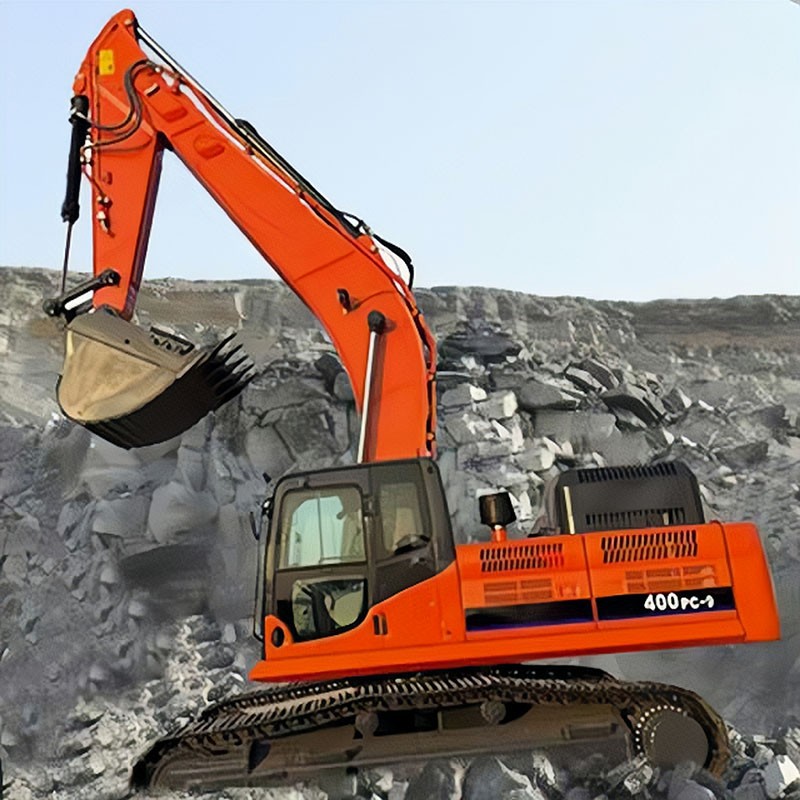

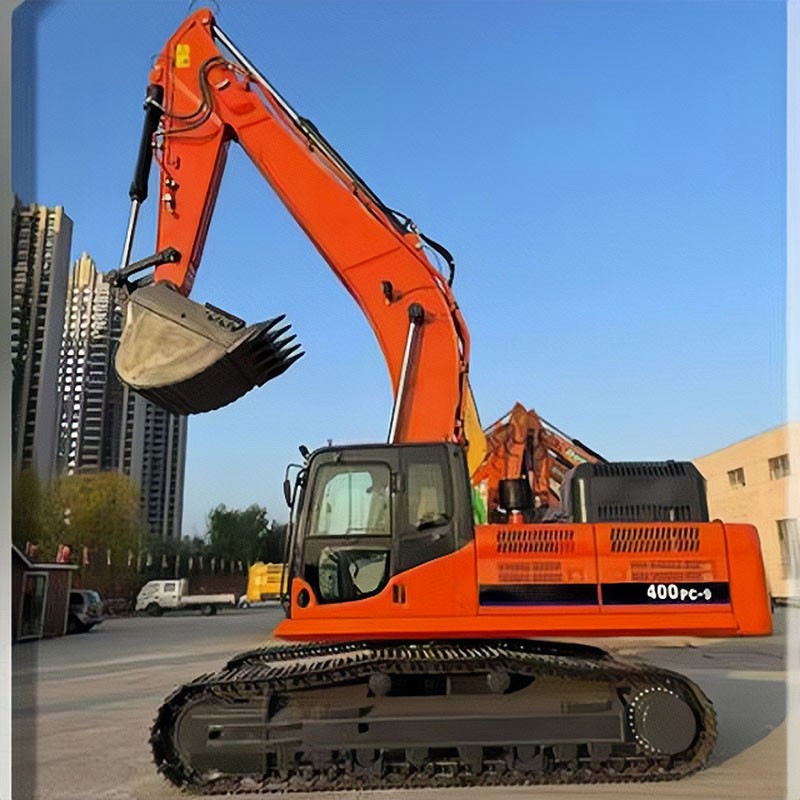

400PC-9 Excavator
- Category： Excavator
- Operating weight: 37.8T
- Bucket capacity: 1.9m³
- Digging force: 240kN
- Engine: Cummins
Main Performance Parameters of 400PC-9 Excavator
| Performance parameters | 1 | Operating weight | 37.8T |
| 2 | Bucket capacity | 1.9m³ | |
| 3 | Engine brand | Cummins | |
| 4 | Engine rated power | 214(287)kW | |
| 5 | Swing speed | 8.2min⁻¹ | |
| 6 | Travel speed (high/low) | 4.9-2.9km/h | |
| 7 | Ground specific pressure | 0.69kg/cm² | |
| 8 | Grade ability | 70% | |
| 9 | Digging force | 240kN | |
| 10 | Boom length | 6500mm | |
| 11 | Arm length | 2902mm | |
| Dimensions | 12 | Transport length | 11380mm |
| 13 | Transport arm height | 3720mm | |
| 14 | Wheelbase | 4050mm | |
| 15 | Radius of gyration platfom end | 3530mm | |
| 16 | Counter weight ground clearance | 1250mm | |
| 17 | Track gauge | 2750mm | |
| 18 | Total width of under carriage | 3350mm | |
| 19 | Width of upper structure | 3155mm | |
| 20 | Width of track shoe | 600mm | |
| 21 | Ground clearance | 545mm | |
| 22 | Total length of travel mechanism | 4975mm | |
| 23 | Total width of cabin | 1035mm | |
| 24 | Cabin height | 845mm |
