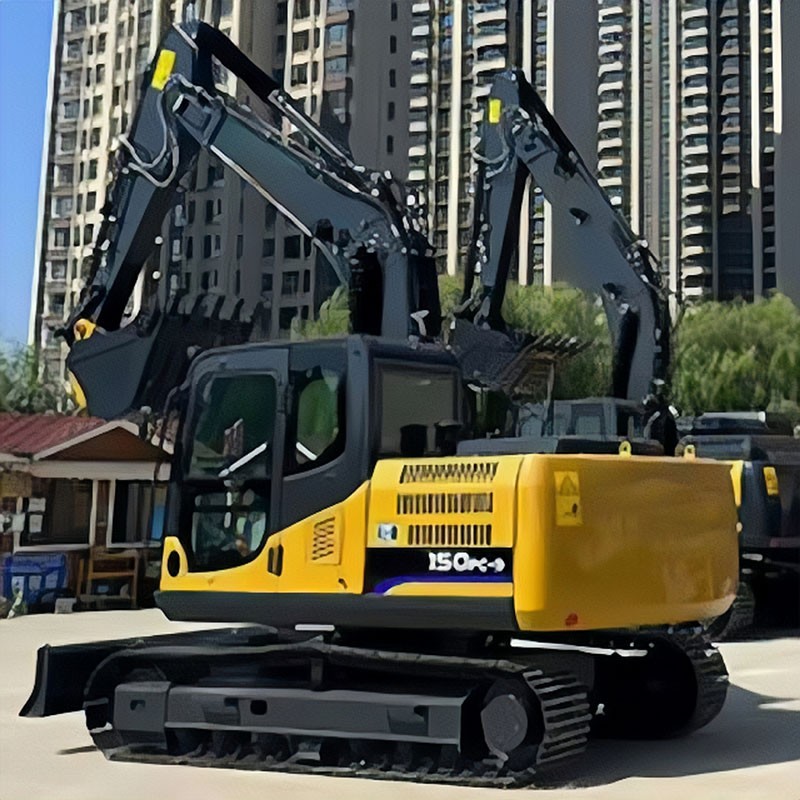

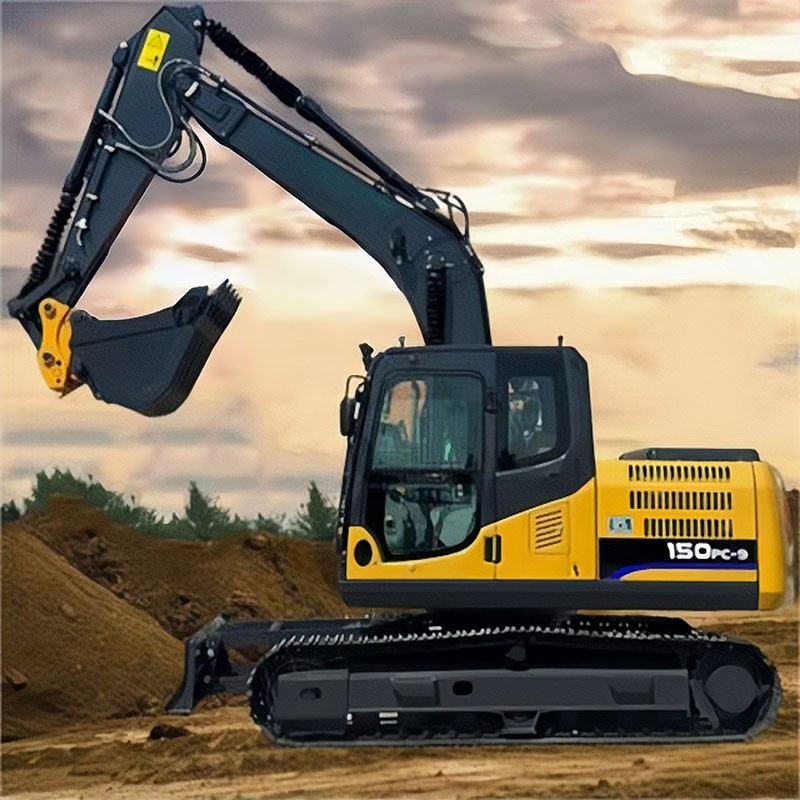

150PC-9 Excavator
- Category： Excavator
- Operating weight: 14.8T
- Bucket capacity: 0.53-0.58m³
- Digging force: Standard 77.4kN/Pressurized 81.3kN
- Engine: Cummins
Main Performance Parameters of 150PC-9 Excavator
Performance parameters
1
Operating weight
14.8T
2
Bucket capacity
0.53-0.58m³
3
Engine brand
Cummins
4
Engine rated power
73kW/1850rpm
5
Swing speed
10.1min⁻¹
6
Travel speed (high/low)
5.04/3.01km/h
7
Ground specific pressure
0.35-0.36kg/cm²
8
Grade ability
70%
9
Digging force
Standard 77.4kN/Pressurized 81.3kN
10
Boom length
4600mm
11
Arm length
2500mm
Dimensions
17
Transport length
7662mm
18
Transport arm height
2980mm
19
Wheelbase
2780mm
20
Radius of gyration platfom end
2202mm
21
Counter weight ground clearance
910mm
22
Track gauge
985mm
23
Total width of under carriage
2510mm
24
Width of upper structure
2510mm
25
Width of track shoe
500mm
26
Ground clearance
430mm
27
Total length of travel mechanism
3750mm
28
Cabin height
845mm
